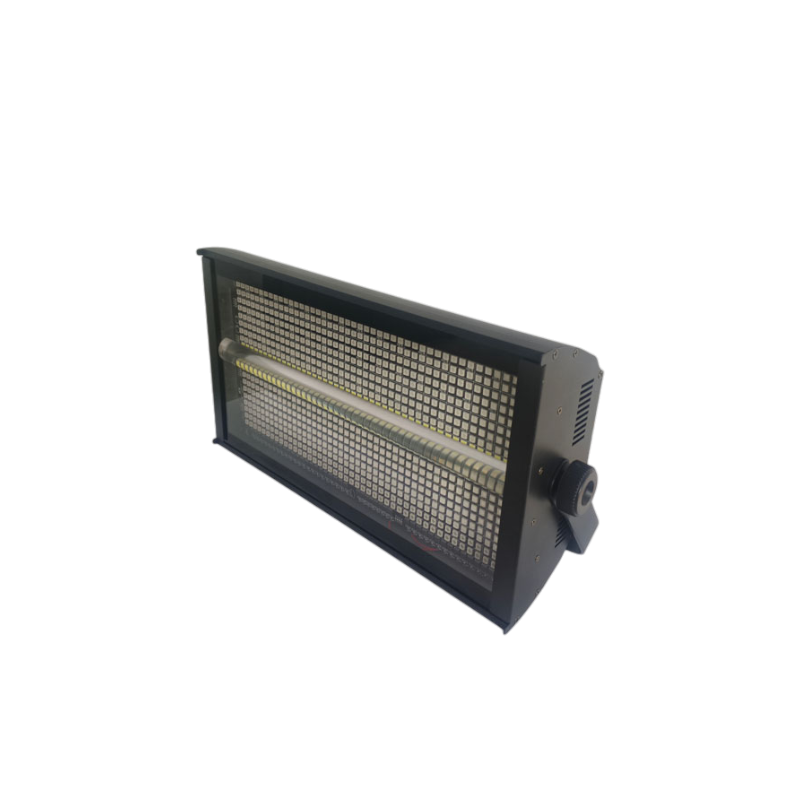

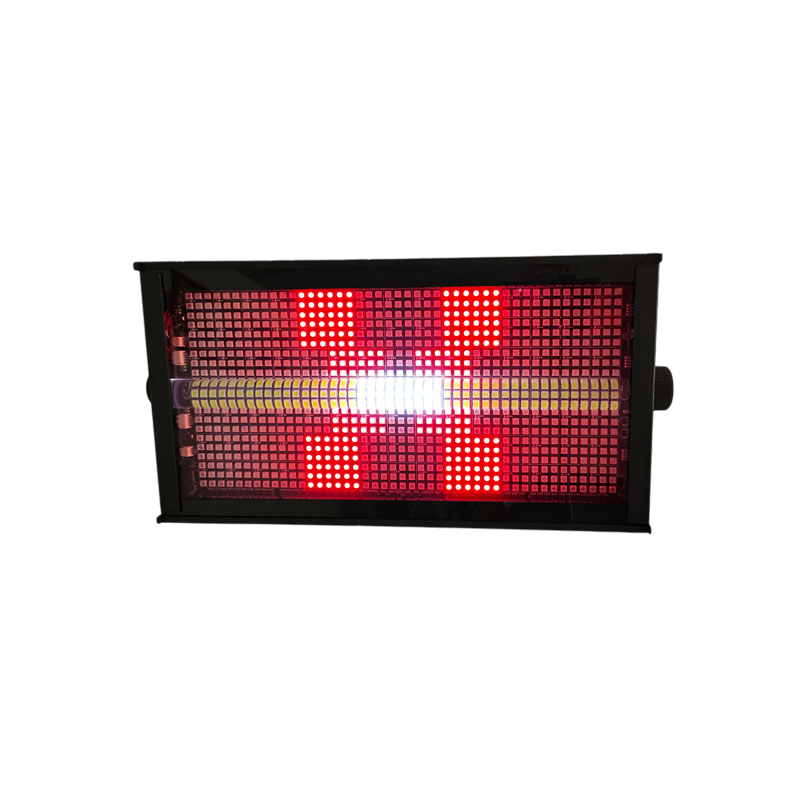

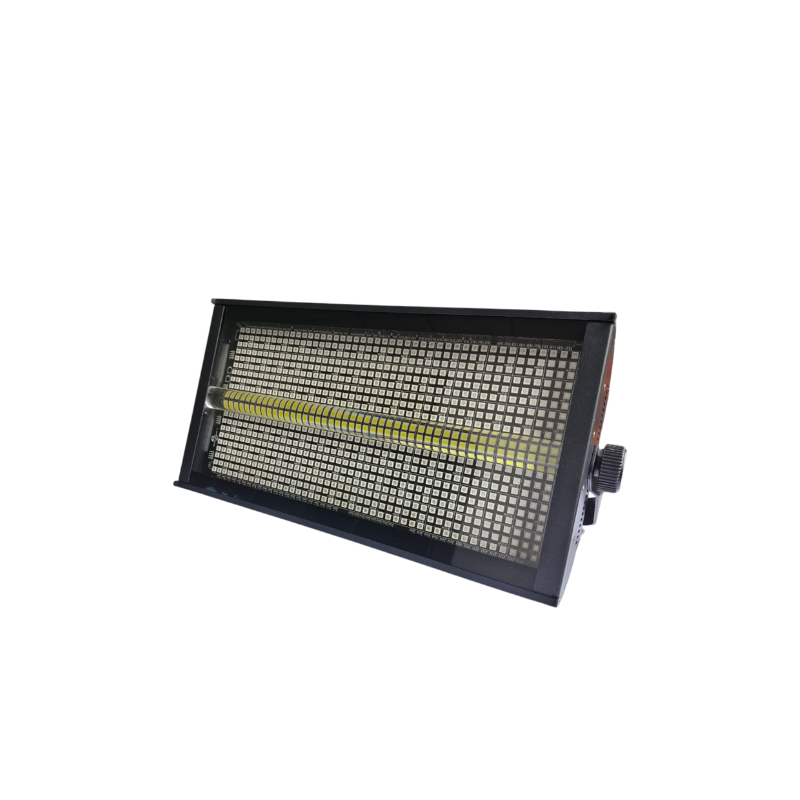

Stomp Pix – LED Stage Effect Light with DMX/RDM Control
Overview
The Stomp Pix is a professional LED stage light designed for stages, events, and entertainment venues that require high visual impact and flexible control. Equipped with a powerful combination of high-efficiency RGB and white LEDs, it offers a wide range of colors and dynamic effects. Its DMX512 and RDM compatibility, along with standalone and sound-activated modes, make it a versatile option for both permanent installations and live productions.
Operating Voltage: AC100V~240V (50/60Hz)
Power Supply: 32V DC / 200W
Light Source:
810 x 0.2W 5050 RGB LEDs
270 x 0.5W 5730 White LEDs
Rated Power: 200W
Flash Frequency: 1–30 Hz
Operating Temperature: -20°C to 85°C
Control Modes:
DMX512
Automatic
Master/Slave
Sound Control
Channel Modes: Selectable 4CH / 12CH / 15CH / 21CH / 300CH / 321CH
Dimming: 32-bit, 0–100% Linear
DMX Functions (Summary by Mode):
4CH: Basic RGBW Control (Individual Dimming per color)
12CH: RGBW control of strobe effects for single and double characters
15CH: RGBW automatic macros, background effects, and color selection
21CH: RGBW macros for double text with color control per side (left/right)
300CH: Individual control of 90 RGB modules and 30 white modules
321CH: Full RGBW control of text, background, and 120 independent LED segments
Automatic Effects:
75 RGB effects
50 White effects
75 combined RGBW effects
6 sound-activated modes (adjustable from 1 to 6)
75 automatic RGB animations and 50 white LED animations
10 microphone sensitivity levels (SU01–SU10)
Additional Functions:
Single or double text mode (36 characters available)
Text color selection (7 fixed colors)
Left and right font mode with independent color
Color temperature adjustment Protection (TP40–TP90°C)
Thermal sensor detection (TERR if not detected)
Display reversal (FLI0–2: normal, inverted, or random)
Factory reset (Rest ON/OFF)
Display and controls:
MENU / UP / DOWN / ENTER keys
Digital display with extended menu
Access to RGB, W, and RGBW animations with adjustable speed (SP01–SP99)
Design and construction:
Metal housing with magnifying lens over LEDs
DMX IN/OUT and Power IN/OUT connections
Truss or surface mounting
Optimized passive cooling
Ideal applications: Stages, theaters, nightclubs, festivals, studios, and architectural installations with textual or graphic lighting effects
