Multi-Effect Moving Head Light – 80W with Laser and Remote Control
- Operating Voltage: AC100V~245V (50Hz)
- Rated Power: 80W
- Light Source:
4 x 10W CREE RGBW LEDs
3 x 3W LEDs
100mW Red Laser
50mW Green Laser
2 x 10W Yellow Strobe LEDs
- Control Modes:
DMX512 (18 channels)
Automatic (A1–A3)
Master/Slave
Sound-activated control (S1–S2)
Infrared (IR) remote control
- Fading: 0–100% linear, ultra-smooth
- Strobe effect: Up to 20 flashes per second
- Motion:
PAN: 540°
Motion speed: Adjustable per channel
- DMX Channels: 18 channels
- Main DMX Functions:
CH1–2: Pan and Speed Movement
CH3: Magic Ball Pattern Rotation
CH4–7: Beam Motor Control (Beam 1–4)
CH8: General Dimming
CH9: LED Strobe
CH10–13: Individual RGBW Dimming
CH14: Magic Ball Effect Control
CH15–16: Red and Green Laser Control
CH17: Yellow Strobe (Variable Speed)
CH18: Color Macros / Effects / Reset
-
Automatic modes:
- A1: Laser + Beam + Pattern + Strobe
A2: Laser + Beam + Pattern (without strobe)
A3: Beam + Pattern (without laser)
- A1: Laser + Beam + Pattern + Strobe
-
Sound control:
- S1: Standard music mode
S2: Extended music mode (higher sensitivity)
- S1: Standard music mode
-
Remote control functions:
- Power On/Off
AUTO (switches between modes A1–A3)
SPEED ± (program speed adjustment)
MIC ± (microphone sensitivity adjustment)
Color, pattern, laser, or strobe selection
- Power On/Off
-

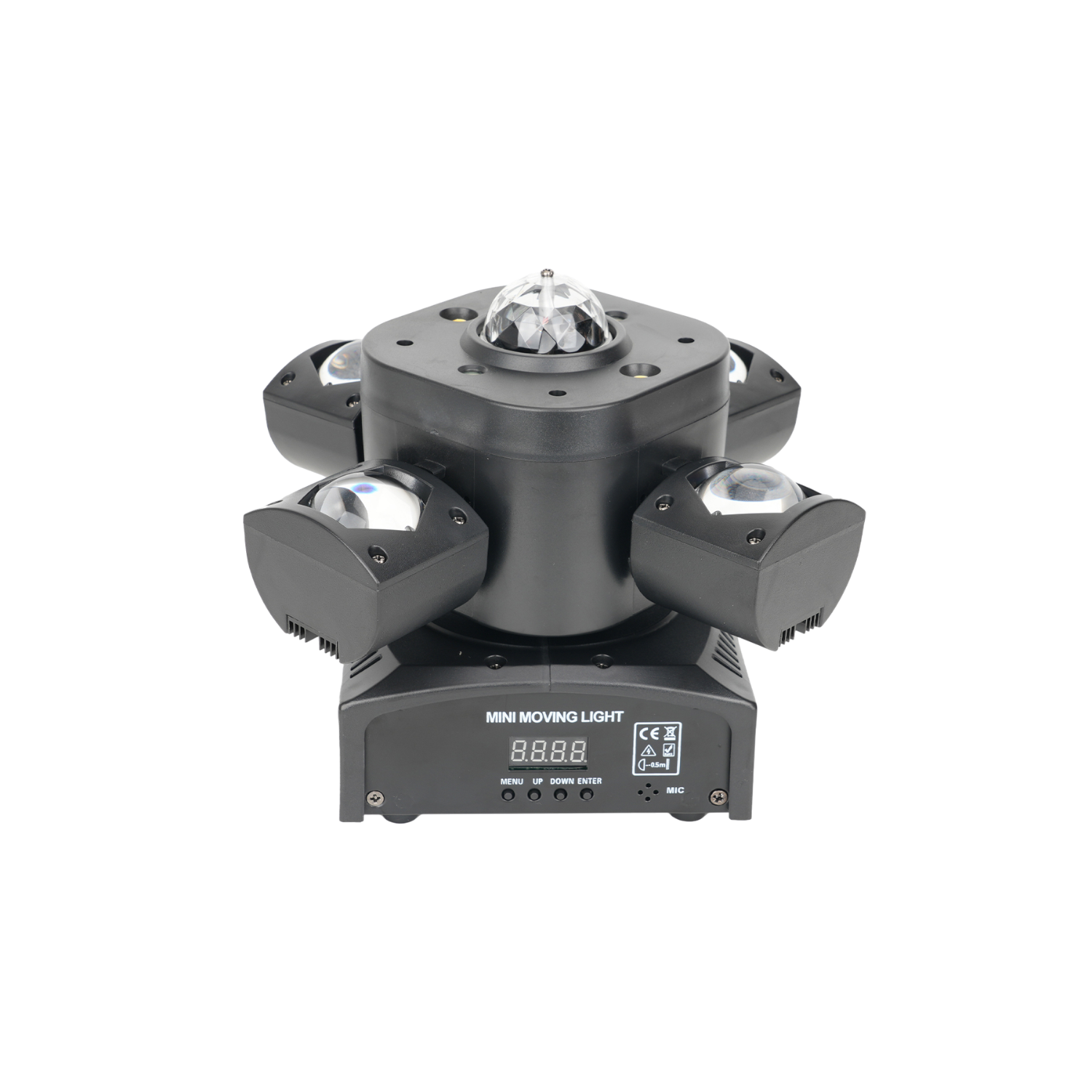

Screen and controls:
- LED display with MENU / UP / DOWN / ENTER buttons
DMX settings: speed, sensitivity, and orientation
Automatic display power-off option
Manual reset via menu
- LED display with MENU / UP / DOWN / ENTER buttons
-
Design and construction:
- Reinforced metal casing
Active ventilation system
Adjustable mounting bracket
- Reinforced metal casing
-
Ideal applications: Nightclubs, bars, stages, mobile events and compact setups
Dimensions and weight:
Size: 25.5 × 25.5 × 21 cm
Net weight: 1.9 kg
