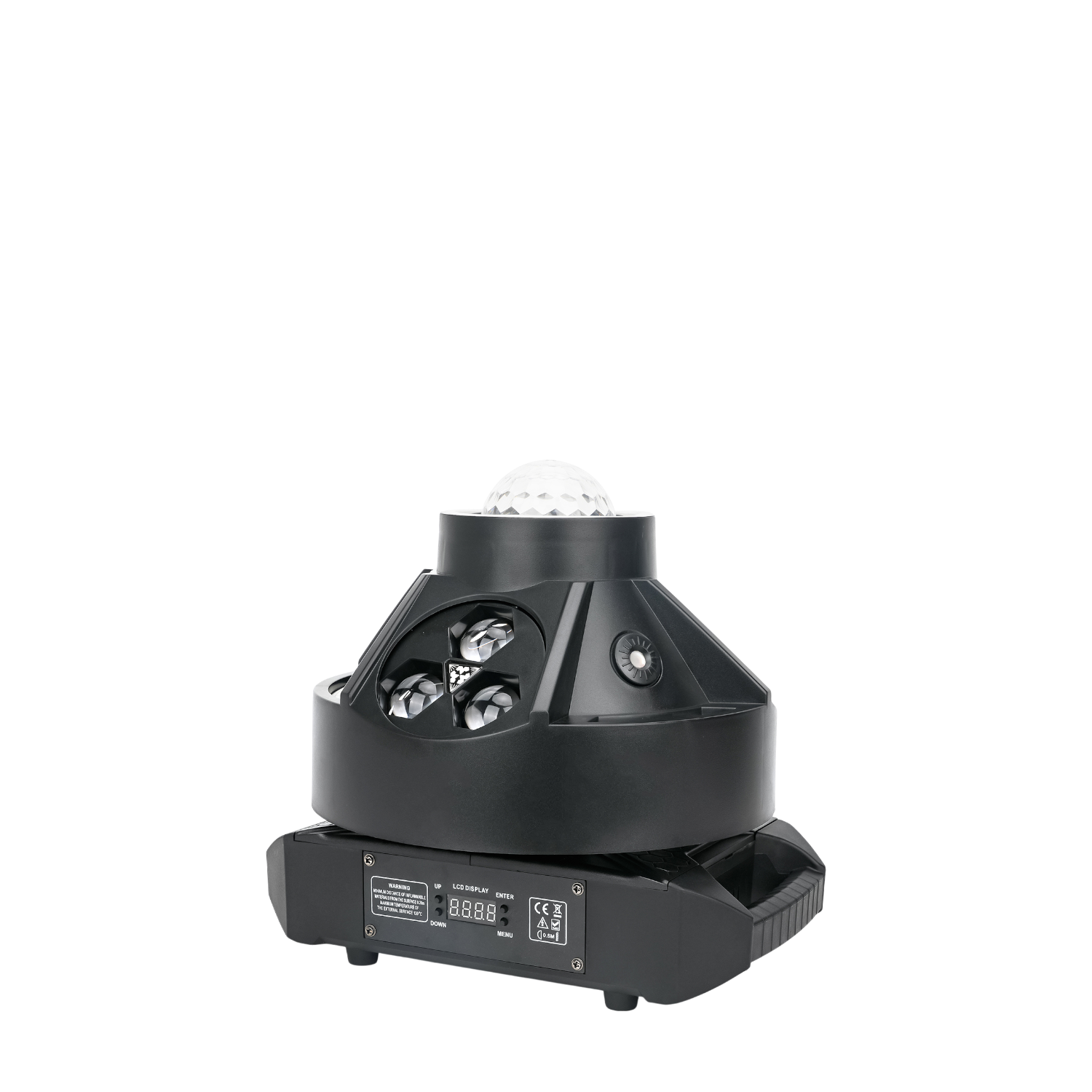

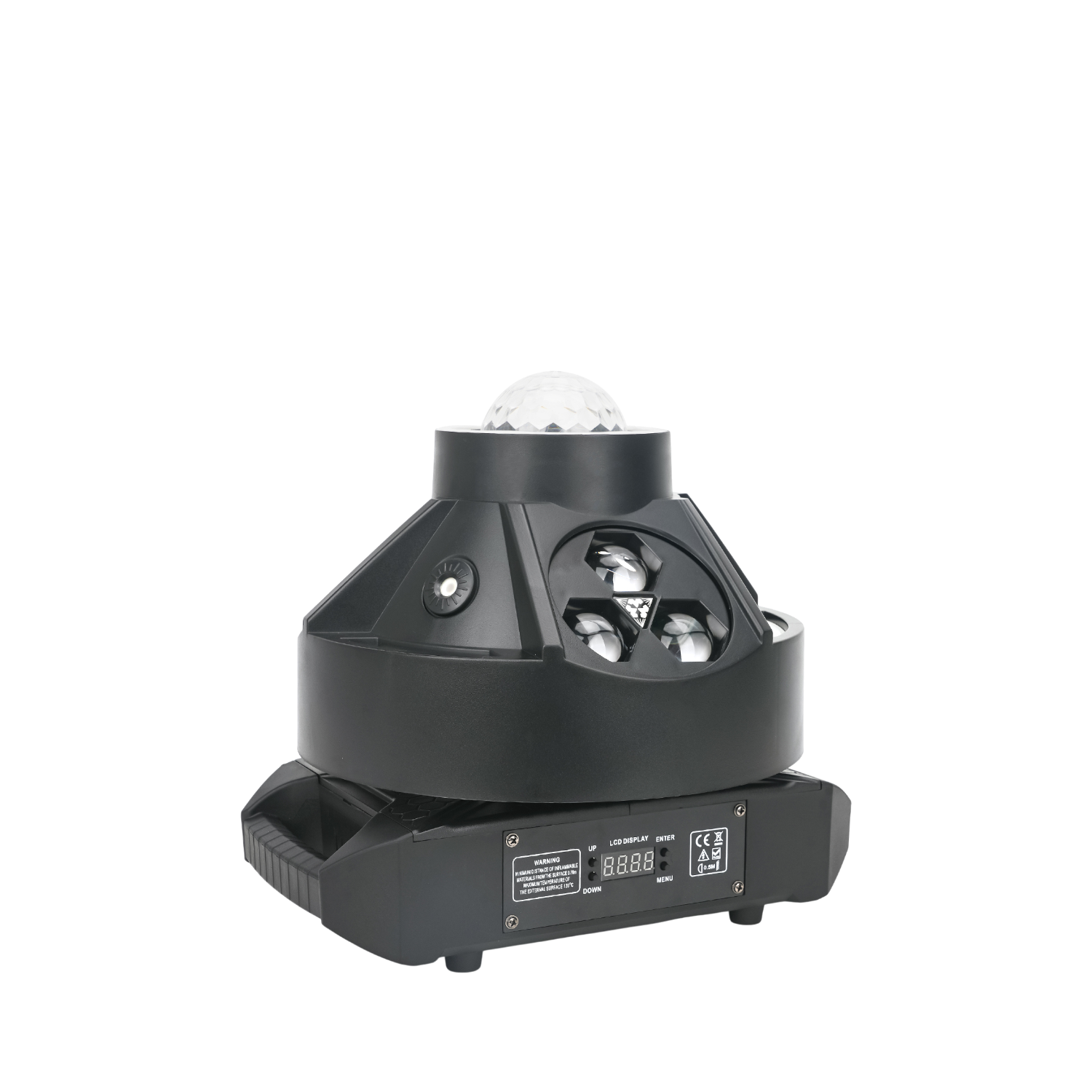

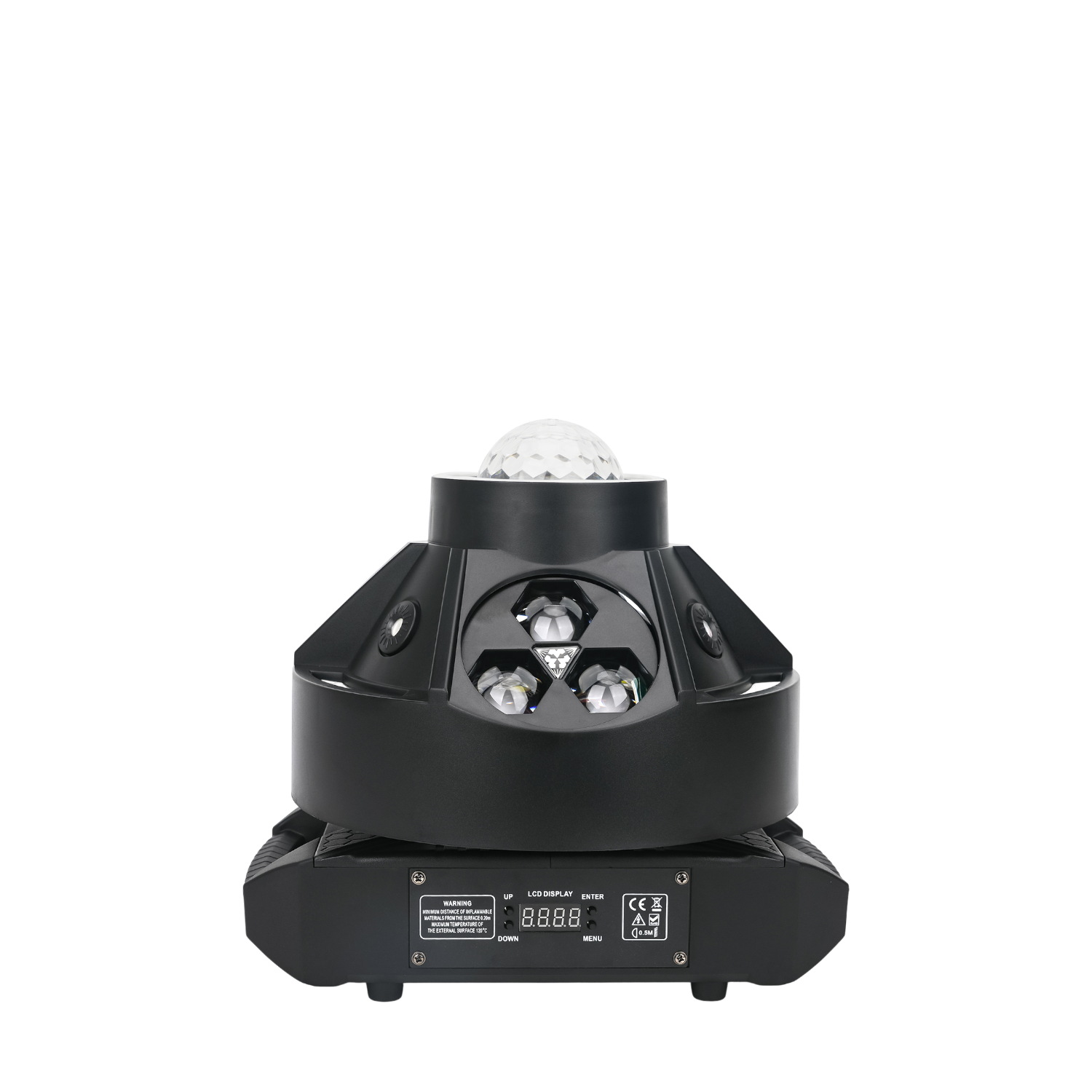

The Macrolite ALLBEAML is a high-performance, multi-function moving head designed for productions seeking maximum visual creativity in a single unit. Its design combines Bee Eye technology, light strip effects, kaleidoscope, lasers, and strobes, resulting in an extremely versatile fixture for stages, clubs, events, and professional audiovisual productions.
Its optical system incorporates nine high-power Bee Eye RGBW LEDs, capable of generating defined beams, dynamic zoom effects, and immersive patterns. This is complemented by a pixel mapping system with RGBW strips, multi-color strobes, and a set of red, green, and blue lasers, allowing for the creation of complex scenes, layers of light, and kinetic effects with high visual impact.
The ALLBEAML offers wide and fluid movements, with 540° of pan and infinite tilt, guaranteeing complete space coverage and smooth transitions, even in the most demanding shows. It can operate autonomously in automatic or sound-activated mode, be synchronized via master/slave, or be fully integrated into professional systems using DMX512, providing detailed control over each light source and every pixel.
Thanks to its LED display with menu system and control buttons, setup is quick and intuitive, facilitating adjustments to speed, sensitivity, motors, Bee Eye effects, kaleidoscope, laser, and strobes. Powerful, creative, and extremely flexible, the Macrolite ALLBEAML is the ideal solution for those seeking an all-in-one moving head capable of transforming any scene into an immersive visual experience.
Technical Specifications
Equipment Type:
• Moving Head Bee Eye with Light Strip, Kaleidoscope, Laser, and Strobe
Light Source:
• 9 x 10W RGBW Bee Eye LEDs
• 1 x 20W RGBW LED (kaleidoscope/magic ball effect)
• 21 x RGBW light strips with pixel-controlled operation
• 3 x 10W RGB strobes
• Red (100mW), green (50mW), and blue (80mW) lasers
Total Power:
• 150 W
Movements:
• PAN: 540°
• TILT: Infinite
Dimmer:
• Electronic 0–100%
Strobe:
• 1–25 flashes per second
Operating Modes:
• DMX512
• Auto
• Sound Control
• Master/Slave
DMX Channels:
• 23 channels
Effects:
• Bee Eye with dynamic patterns
• Multi-color kaleidoscope
• RGBW pixel mapping
• Surround light strip
• RGB laser
• Multi-color strobe
• Automatic programs and sound control
Control:
• LED display with menu and navigation buttons
• Infrared remote control support
Connectivity:
• DMX 3-pin XLR (input/output)
Power Supply:
• 110–220 V AC / 50–60 Hz
Power Consumption:
• 150 W W
Power cable:
• IEC – 1.2 m length
Installation:
• Truss or flat surface mounting
• Includes hanger bracket
