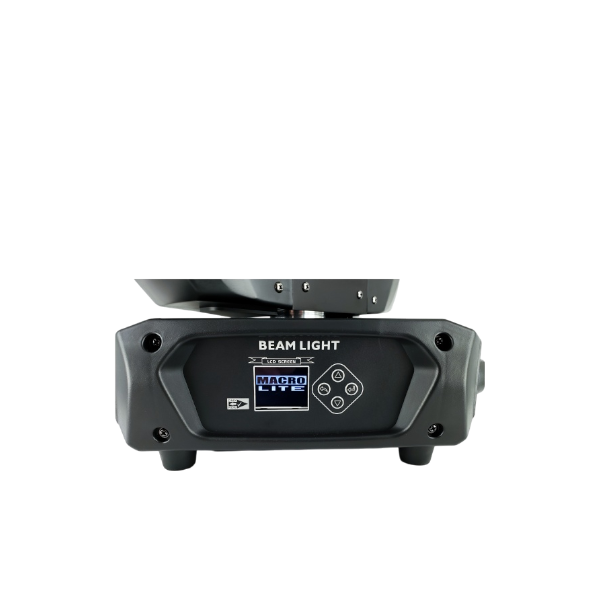

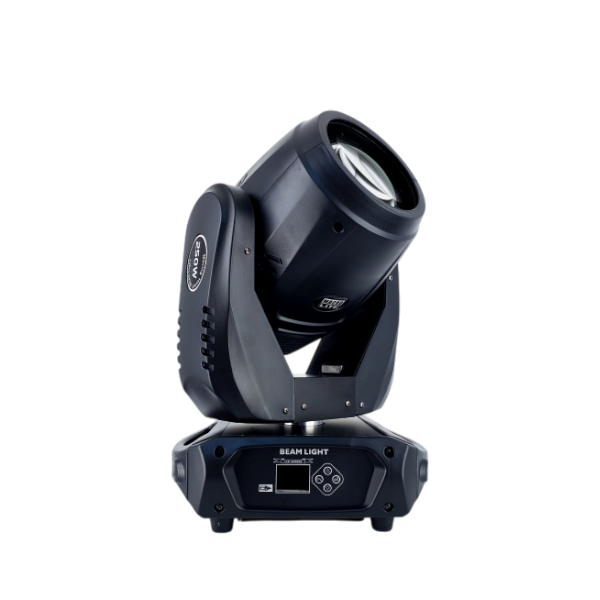

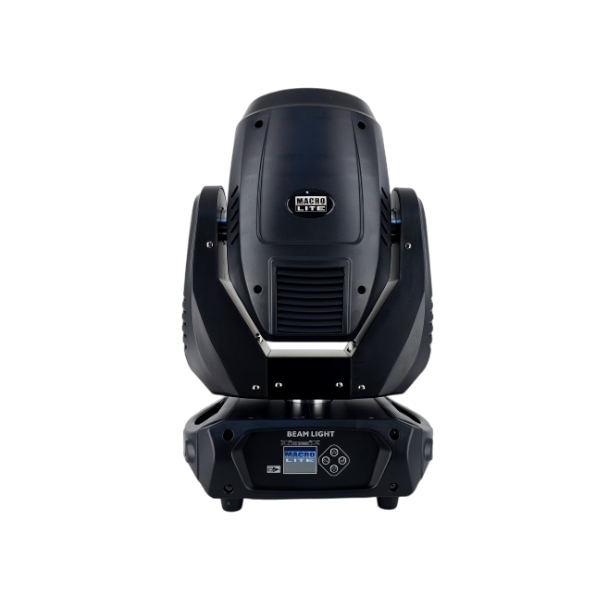

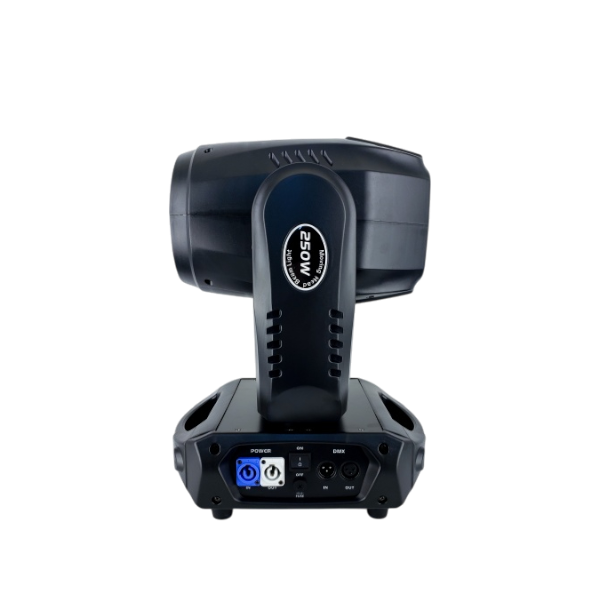

The Macrolite Beam10R head is synonymous with high performance and versatility in the world of professional lighting. Designed to deliver powerful and precise light, this head is a marvel of modern engineering, combining advanced electronic control technology with a sleek and ergonomic industrial design.
With the Macrolite Head, you’ll take lighting to a new level of excellence. Its robust design and advanced capabilities make it the perfect choice for any environment requiring powerful, versatile, and high-quality light. Whether you’re lighting a stage for a major performance or creating the perfect atmosphere for a special event, the Macrolite will provide the reliability and performance you need to make every moment shine.
Key Features:
- High-Power Lamp: Equipped with a 250W Philips MSD Platinum lamp, the Macrolite offers an average lifespan of up to 2,200 hours, with a color temperature of 8,000K that ensures vibrant colors and excellent clarity.
- Fast and Precise Scanning: With 540° horizontal and 270° vertical scanning capabilities, the Macrolite head uses electronic error correction to ensure 16-bit scanning accuracy, enabling smooth and fast movements with low operating noise.
- Rich Variety of Effects: The Macrolite comes with a color disc that includes 14 color sheets and a pattern plate with 13 effects, offering a wide range of options for creating unique and spectacular atmospheres. It also features two wide-angle rotating prisms and an atomizing effect to further enhance stage lighting.
- Flexible Adjustments and Advanced Functionality: With 0-100% mechanical dimming options, adjustable strobe effects, and a macro strobe function, the Macrolite easily adapts to diverse lighting needs, allowing for precise and dynamic light control.

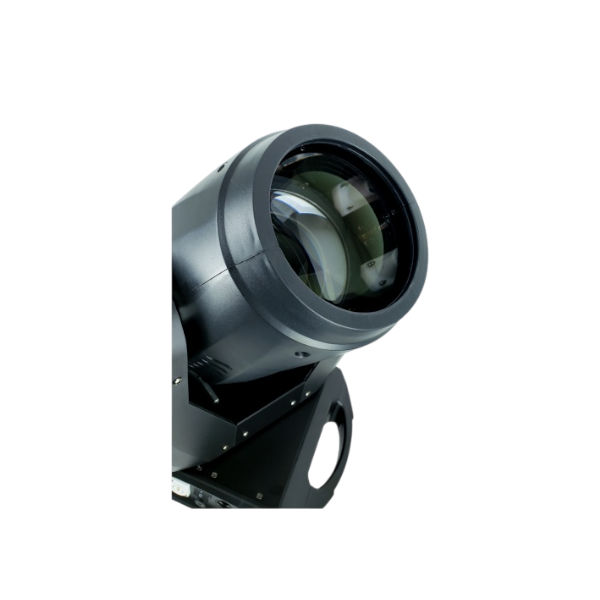

- Precision Optical System: Its optical system consists of a multi-coated lens group, offering electric focus and an adjustable beam angle of 0-4°, ideal for applications requiring high-quality, directional lighting.
Technical Specifications:
- Input Power: 100-240 V AC, 50/60 Hz.
- Power Consumption: 350W.
- Lamp: Philips MSD Platinum 250W.
- Lamp Life: Approximately 2200 hours.
- Color Temperature: 8000K.
- Horizontal Scanning: 540° with electronic error correction.
- Vertical Scanning: 270° with electronic error correction.
- Color Disc: 14 color sheets.
- Pattern Plate: 13 effects.
- Effects Wheel: Two rotating, overlapping prisms with additional prism options.
- Atomization Function: Color plate.
- Dimming: 0-100% mechanical, compatible with strobe effect.
- Optical System: Multi-coated composite lenses, electric focus, 0-4° beam angle.
- Protection: Overheating protection.
- Protection Rating: IP20
Head Dimensions: 327 x 268 x 490 mm
Case Dimensions: 515 x 440 x 725 mm
Net Weight: 14.5 kg
