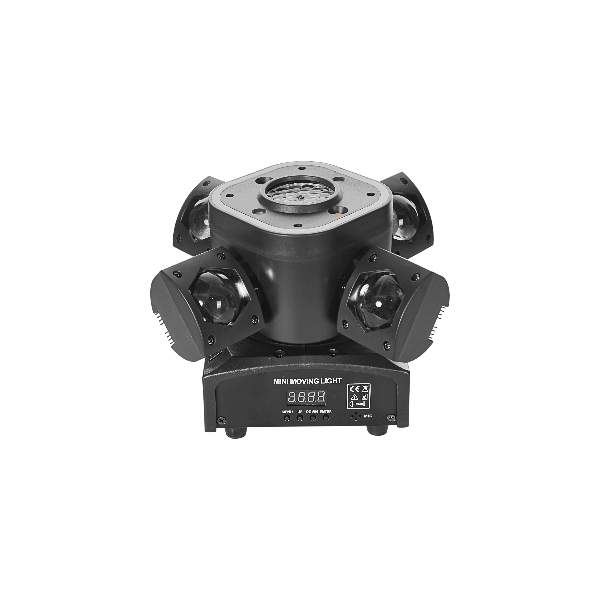

Multi-Effect Moving Head – 60W with Laser and Remote Control
- Operating Voltage: AC95V~245V (50Hz)
- Rated Power: 60W
- Light Source:
4 x 10W CREE RGBW LEDs
3 x 3W Additional LEDs
100mW Red Laser
50mW Green Laser
2 x 10W White Strobe LEDs
24 Full-Light LED Strips
- Control Modes:
DMX512 (20 channels)
Automatic (A1, A2, A3)
Master/Slave
Sound-activated control (S1, S2)
Infrared (IR) remote control
- Dimming: 0–100% linear, ultra-smooth
- Strobe effect: Up to 20 flashes per second
- DMX channels: 20 multi-function channels
- Main DMX functions:
PAN: 540° (CH1)
Movement speed (CH2)
Pattern/Magic Ball rotation (CH3)
Beam motor control (CH4–CH7)
General dimming (CH8)
Strobe (CH9)
Individual RGBW dimming (CH10–CH13)
Magic Ball effect control (CH14)
Red and green laser (CH15–CH16)
White strobe (CH17)
Pre-programmed color macros (CH18–CH19)
Macro speed control (CH19)
General macro mode (CH20)
- Automatic Modes:
A1: Laser + Beam + Pattern + Strobe
A2: Laser + Beam + Pattern (no strobe)
A3: Beam + Pattern (no laser)
- Sound control:
S1: Adjustable sensitivity from 0–100
S2: Music mode with dynamic response
- Remote control functions:
ON/OFF
AUTO (switches between automatic modes)
Speed + / – (speed adjustment)
Mic + / – (microphone sensitivity)
Direct selection of color, pattern, or laser
Quick access to A1, A2, A3, and S1 modes
- Display and Controls:
MENU / UP / DOWN / ENTER keys
Automatic display power on/off
Screen orientation inversion
Manual reset
- Design and Construction:
High-strength metal casing
Active ventilation system
Adjustable mounting bracket
-
Ideal applications: Nightclubs, mobile events, stages, bars, parties, and setups with limited space
