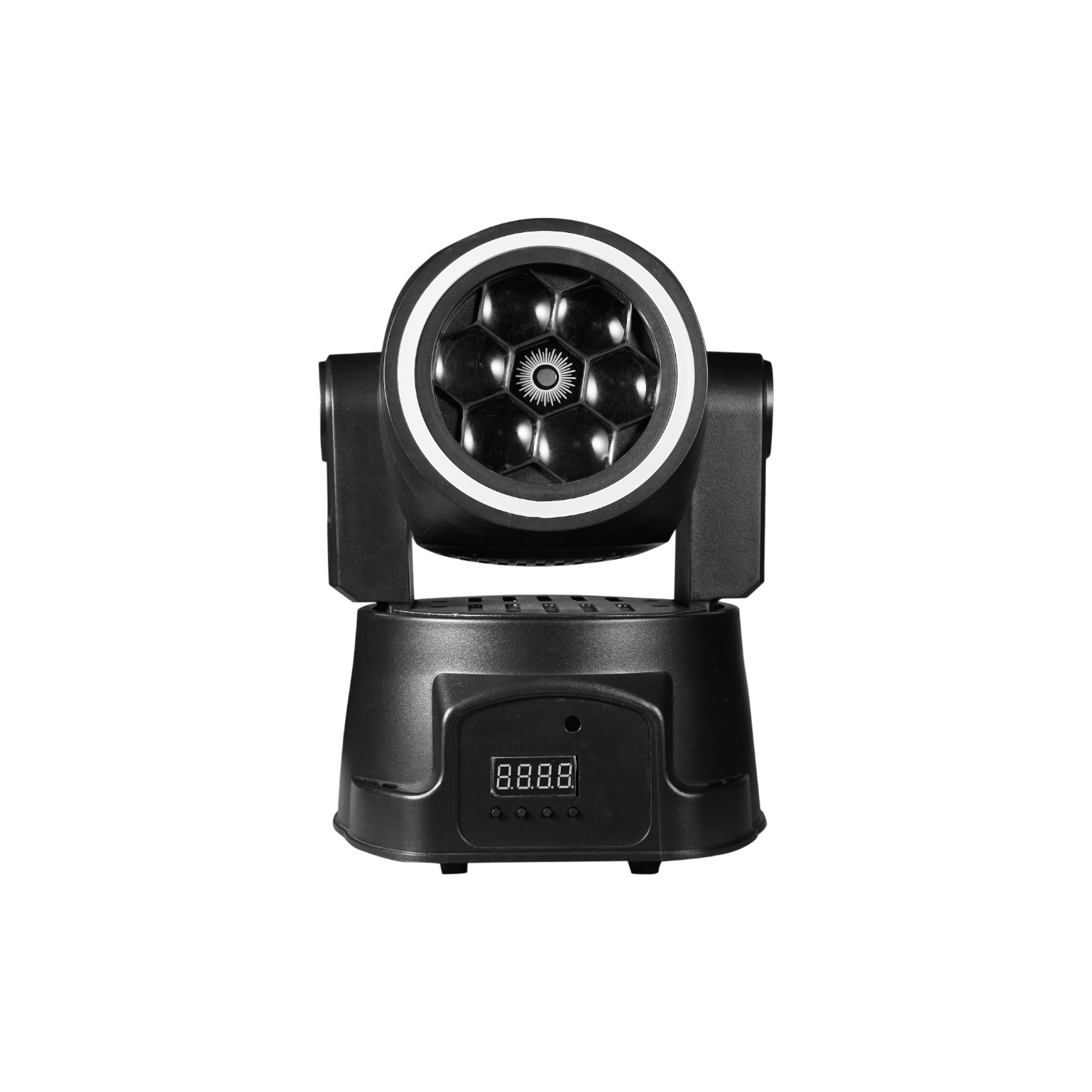

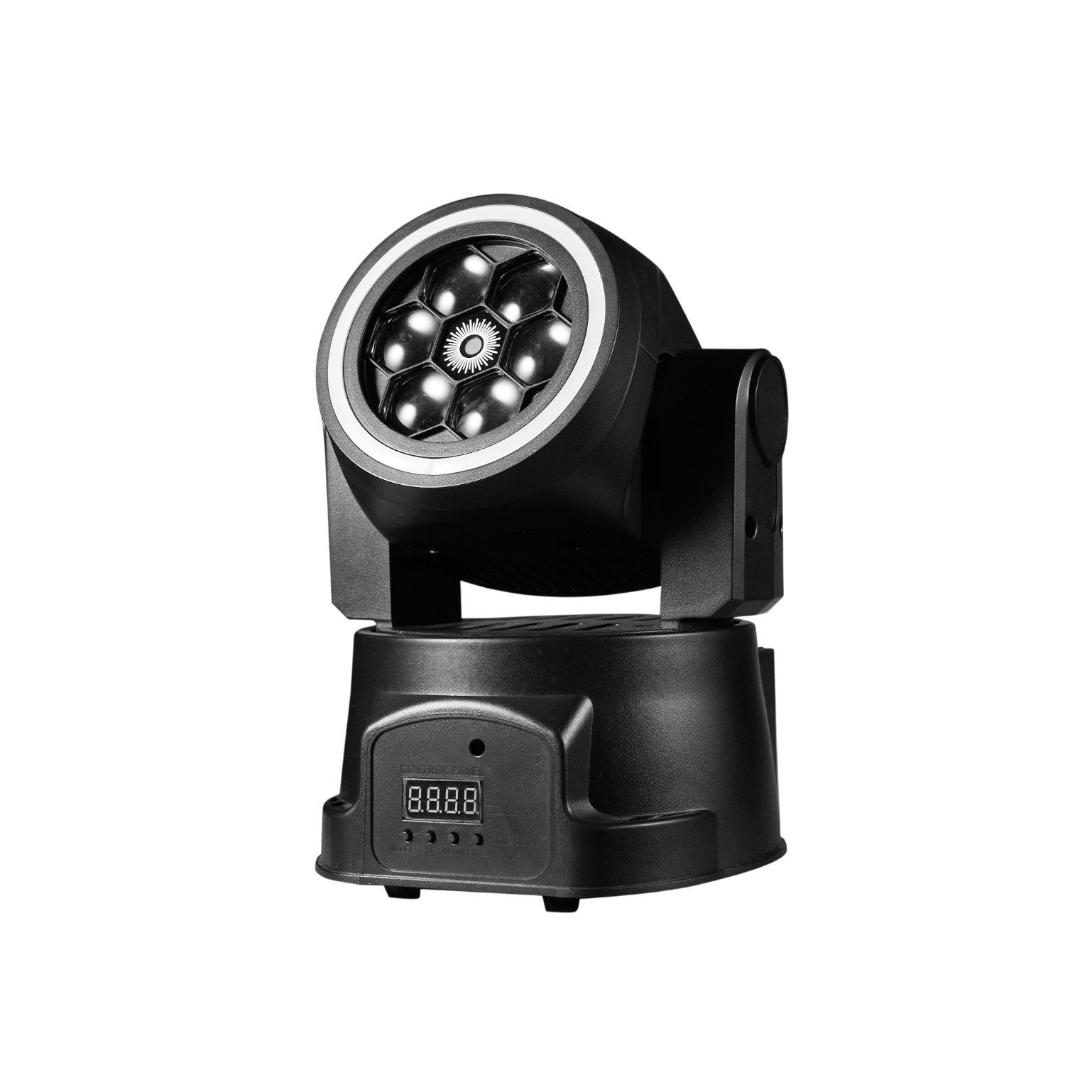

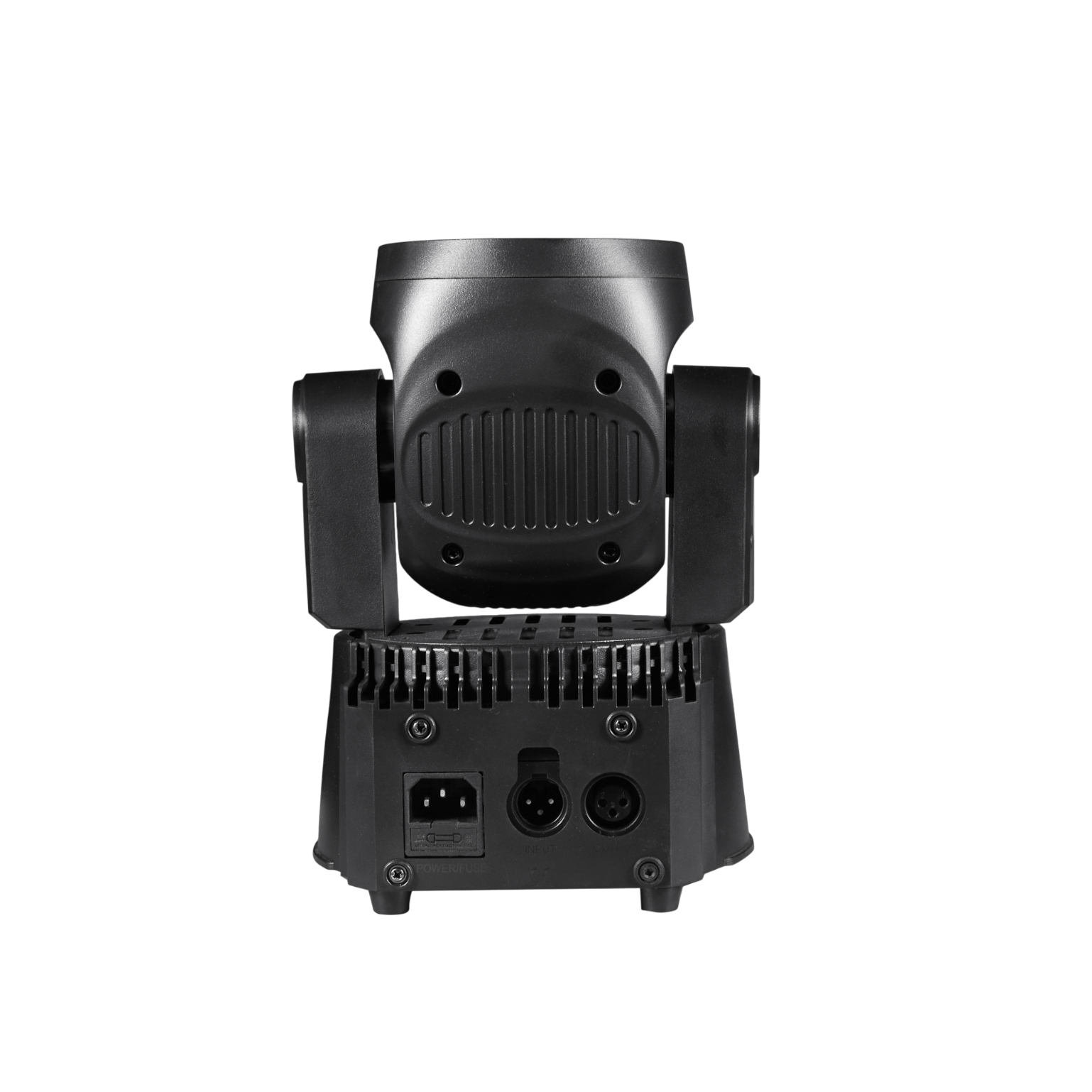

LED and Laser Moving Head
- Operating voltage: AC95V–245V (50/60Hz)
- Rated power: 70W
- Light source:
- 6 x 10W 4-in-1 LEDs (RGBW)20 x Multi-color Soft Light Strips
150mW Green Laser
- 6 x 10W 4-in-1 LEDs (RGBW)20 x Multi-color Soft Light Strips
- Control Modes:
DMX512 (14 or 18 selectable channels)
Master/Slave
Automatic
Sound-activated
- Dimming mode: 0–100% with ultra-smooth dimmer
- Strobe effect: Up to 20 flashes per second
- Motion angles:
PAN: 180° / 360° / 540° (adjustable)
TILT: 90° / 180° / 270° (adjustable)
- Scanning System: High-precision stepper motor
- Main Effects:
Rotating “bee-eye” motion
Dynamic RGBW color flow
Light strip effects with 31 movement patterns
Sound mode with rhythmic response
- DMX Channels:
14 channels for basic control
18 channels for advanced control (fine-tuning of axes and color)
- Additional Functions:
General reset and factory restore
Pan/tilt axis calibration
Individual RGBW and laser intensity adjustment
- Display and Menu: Controlled via panel with MENU / UP / DOWN / ENTER buttons
- Product Dimensions: 18 × 18 × 25.5 cm
- Net Weight: 2.35 kg
- Usage Environment: Indoor
- Ideal Applications: Bars, nightclubs, event venues, stages, parties, hotels, and entertainment centers
- Operating Temperature: -20°C to 55°C
