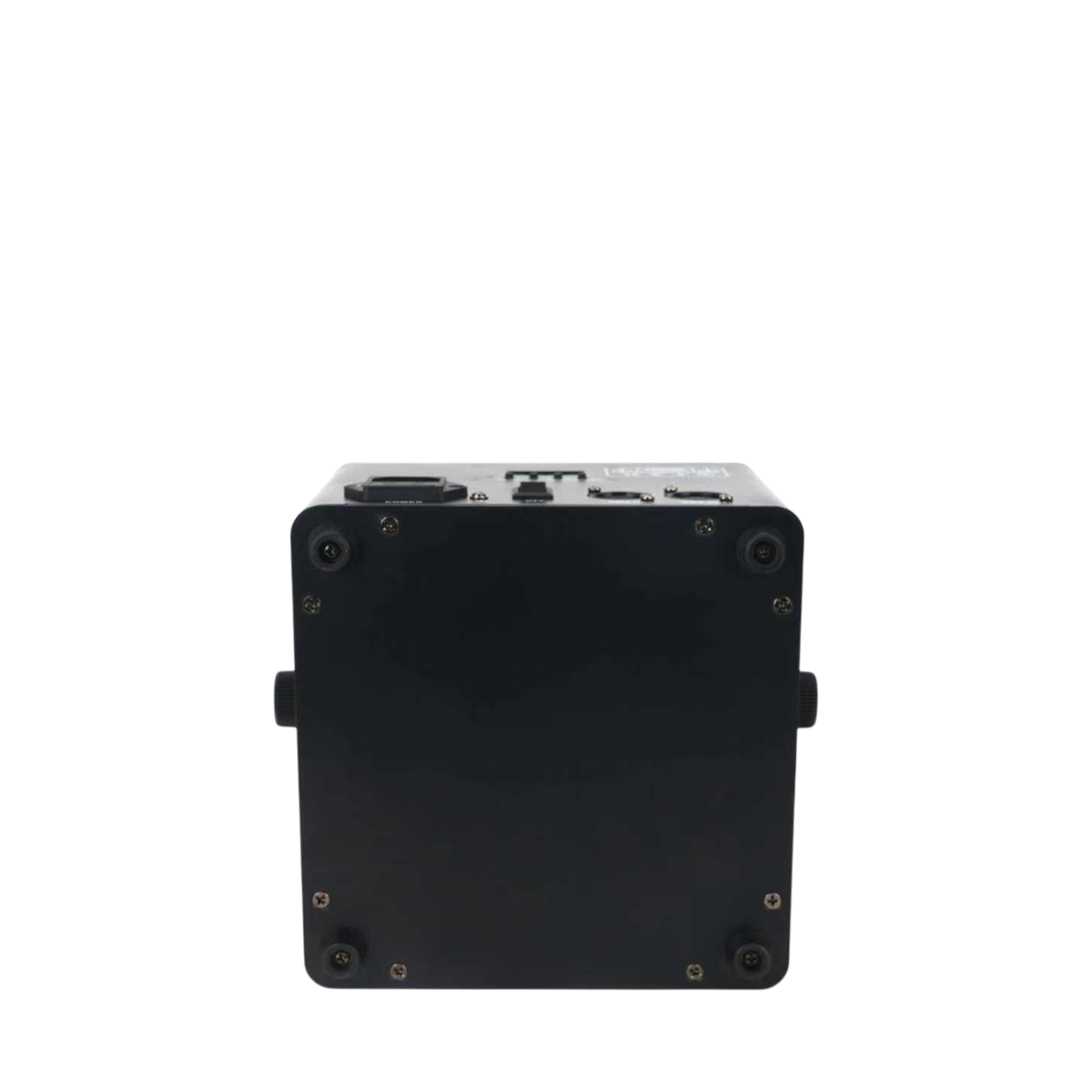

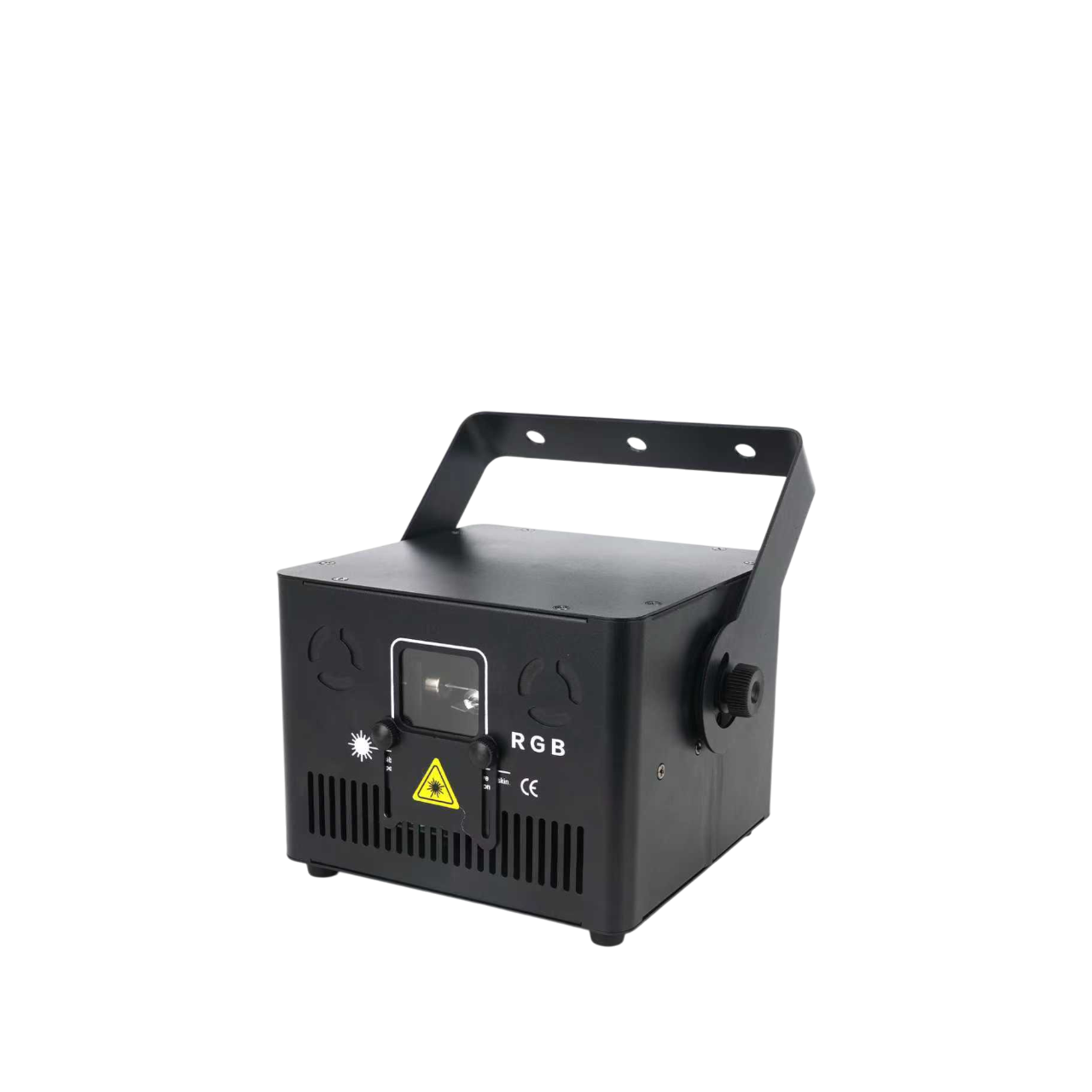

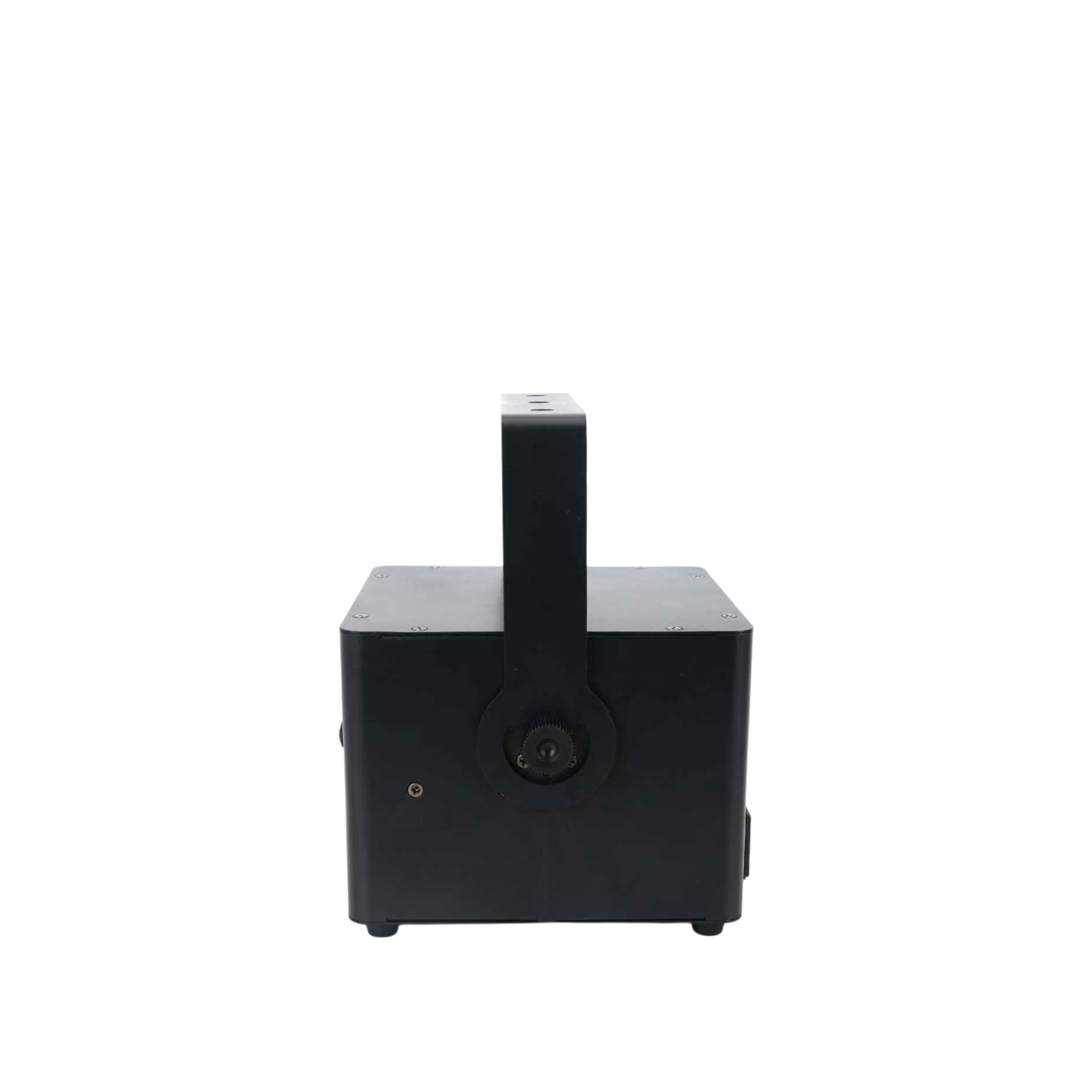

Macrolite B1W
The Macrolite B1W is a high-impact professional laser designed to take stage visuals in clubs, events, and audiovisual productions to the next level. It combines power, precision, and creativity in a compact unit, ideal for both fixed installations and mobile setups.
Its 1W RGB laser source delivers defined, bright, and crisp beams, capable of generating hundreds of integrated animations with great speed and fluidity. Thanks to its Bluetooth connectivity, it allows for the customization of animations, lines, text, names, and patterns, maximizing creative possibilities and adapting to the visual identity of each show.
The B1W can operate autonomously in automatic or sound-activated mode, be synchronized via master/slave, or be integrated into professional systems through DMX512, offering complete control over movements, colors, rotations, scales, and dynamic effects. Its high-speed galvanometer scanning system ensures smooth and precise movements, achieving impactful and immersive visual effects.
With an intuitive interface featuring an LED display and control buttons, the device is quick and easy to operate, even in intensive use. Powerful, versatile, and highly configurable, the Macrolite B1W is a tool designed for creators seeking a reliable, creative laser that delivers professional results in every presentation.
Technical Specifications
Equipment Type:
• Professional laser for stage lighting
Light Source:
• High-intensity RGB laser tube
Total Laser Power:
• 1W
Laser parameters:
• Green: 0.3W – 525 nm
• Red: 0.3W – 638 nm
• Blue: 0.4W – 447 nm
Laser modulation:
• TTL or analog
Beam diameter / Divergence:
• 4 mm / < 2 mrad
Scanning System:
• High-speed galvanometer (DT15KPPS)
Scanning Angle:
• ±20°
Operating Modes:
• DMX512
• Automatic
• Sound Control
• Master/Slave
DMX Channels:
• 16 channels
Effects:
• Hundreds of built-in animations
• Customizable patterns, lines, text, and shapes
• Rotations, scaling, waves, wipes, and dynamic effects
Connectivity:
• Bluetooth for animation customization
• DMX 3-pin XLR (input/output)
Display:
• LED screen with menu system and control buttons
Power Supply:
• 110–220 V AC / 50–60 Hz
Power Consumption:
• 90 W
Power Cable:
• IEC – 1.2 m length
Installation:
• Truss or flat surface mounting
• Includes hanger bracket
Use:
• Indoor
Box contents:
• 1 × Macrolite B1W
• 1 × Power cable
• 1 × User manual
• 1 × Mounting bracket
